AIRBOT Play

6-DoF Agility, Built for Versatility

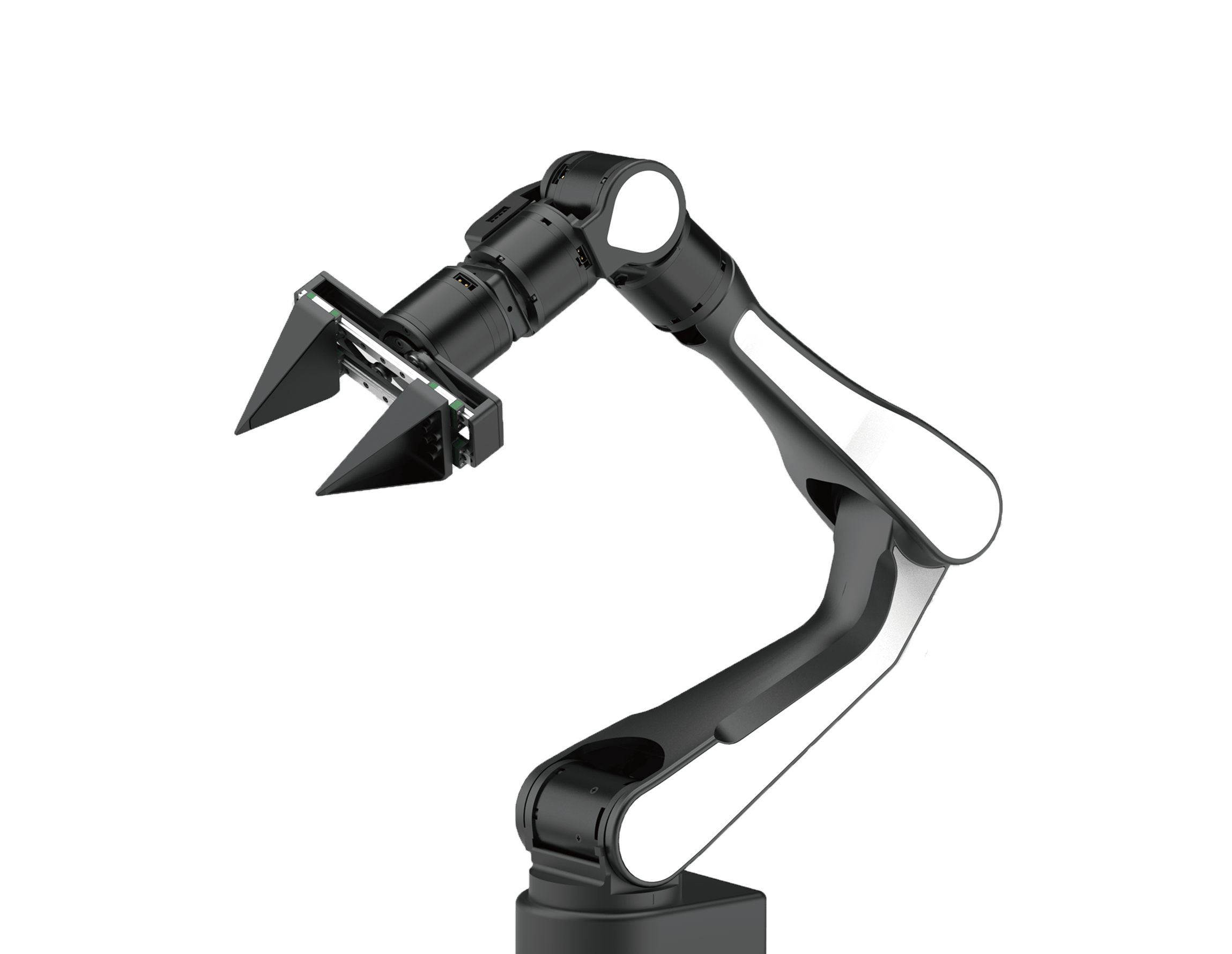

AIRBOT Play hero visual
AIRBOT PlayBuy Now

Safety Brake

J1-J3 Joint Mechanical Brake

AIRBOT Safety Brakes
Weight

Weight

3.78 kg

1.5 kg

Payload

Repeatability

Repeatability

±0.1 mm

Reach

Reach

647 mm

Interfaces

Gravity Compensation

Gravity Compensation

Ultra-Compliant Drag-and-Teach

All-Joint Braking, Reliable Safety

In-house motors enable instant response and stable all-joint braking, providing immediate posture retention during unexpected power loss, over-temperature, or over-current events, preventing arm collapse and ensuring reliable protection for both the robot and operators.

Lightweight
Design, Perfect for Mobile Manipulation

Lightweight Design
Compact Design

With its unique lightweight design, AIRBOT Play is a highly integrated 6-DoF robotic arm with an excellent payload-to-weight ratio. Safe, reliable, easy to use, and portable, it can be easily mounted on Desktop Platforms, Quadruped Robots, Wheeled-Legged Robots and other mobile robot platforms for tabletop and mobile manipulation tasks across diverse scenarios.

Lightweight Design

Lightweight Design, Perfect for Mobile Manipulation

With its unique lightweight design, AIRBOT Play is a highly integrated 6-DoF robotic arm with an excellent payload-to-weight ratio. Safe, reliable, easy to use, and portable, it can be easily mounted on Desktop Platforms, Quadruped Robots, Wheeled-Legged Robots and other mobile robot platforms for tabletop and mobile manipulation tasks across diverse scenarios.

Desktop Platforms
Compact Design

Compact Design for Flexible Workspaces

Its compact structure fits lab benches, space-constrained deployments, and frequent teaching tasks while balancing reach and space efficiency.

Quadruped Robots
Embodied Platform Integration

Compatible with Diverse Embodied AI Platforms

Compatible with a wide range of embodied platforms, end effectors, and algorithm frameworks for flexible experiments and system integration.

Wheeled-Legged Robots

Real2Sim2Real Workflow, Rapid Algorithm Reproduction

AIRBOT Play integrates with diverse mobile platforms, processors, sensors, and end effectors. Users can freely figure out suitable solutions according to their needs. It enables easy secondary development with ROS/ROS2, Python, Web API, and C++ interfaces, covering the full lifecycle of developing robot applications.

Open & Extensible,
Boundless Innovation

AIRBOT Play integrates with diverse mobile platforms, processors, sensors, and end effectors. Users can freely figure out suitable solutions according to their needs. It enables easy secondary development with ROS/ROS2, Python, Web API, and C++ interfaces, covering the full lifecycle of developing robot applications.

Hardware Interface

End-of-Arm Interface

AIRBOT Play End Interface
High-Speed Peripheral
USB 2.0
Low-Speed Peripheral
RS485

Base Interface

AIRBOT Play Base Interface
Control Interface
USB 2.0
Power Input
24 V ±5%, 9.2 A
End-Effector Camera Interface
USB 2.0
Expansion I/O
GPIO, UART, I2C, CAN

Software Interface

ROS 2PythonC++

Compatible Accessory

End-Effector

Two-Finger Gripper
AIRBOT G2
Teaching pendant
AIRBOT E2
BrainCo
BrainCo
Inspire
Inspire
OYMotion
OYMotion
LinkerBot
LinkerBot
AGILINK
AGILINK

Camera

RGB Camera
RGB Camera
RGB-D Camera
RGB-D Camera

Processor

Mini PC
Mini PC
Embedded GPU
Embedded GPU
Embedded BPU
Embedded BPU

Teaching

Product Video

Application

Key Specs

AIRBOT Play

DoF6
Weight3.78 kg
Payload1.5 kg
Reach647 mm
Repeatability±0.1 mm
Power Input24 V ±5%, 9.2 A
CommunicationUSB 2.0, RS485
Control ModesPosition, Torque, Velocity
Development APIsC++, Python, ROS2
Host Computer Compatibilityx86-64, ARM64
Max Power240 W
Dynamics SupportGravity Compensation

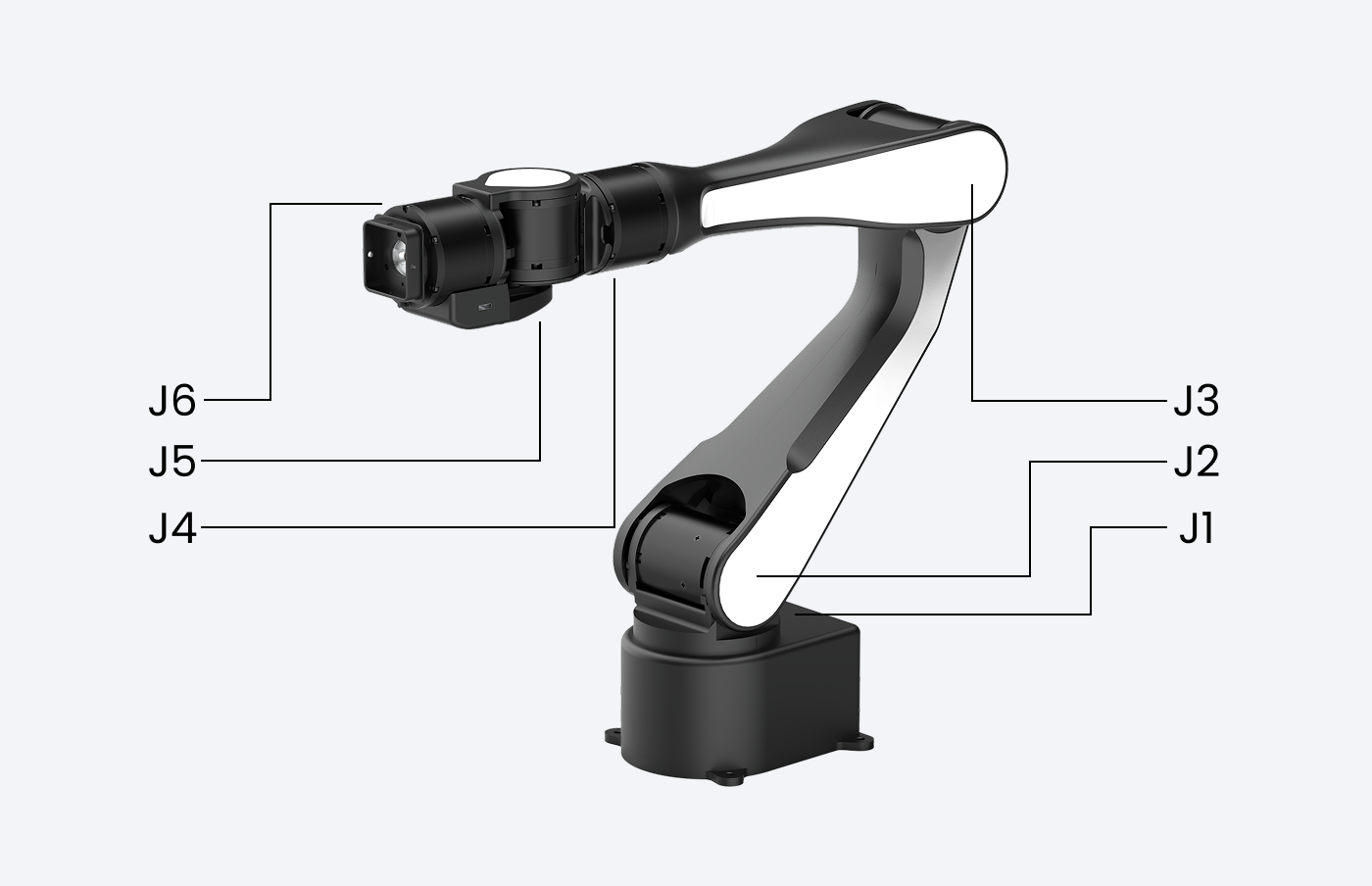

Joint Motion Range

AIRBOT Play joint motion range diagram
No.Range of MotionMax. Joint Speed
J1[-180°, +120°]180°/s
J2[-170°, +10°]180°/s
J3[-5°, +180°]180°/s
J4[-172.5°, +172.5°]360°/s
J5[-105°, +105°]360°/s
J6[-172°, +172°]360°/s
